Optical Distribution Frame Rack Mounted 24 Cores FC SC LC ST Fiber Optic Patch Panel
Liên hệ với tôi để lấy mẫu miễn phí và phiếu giảm giá.
WhatsApp:0086 18588475571
wechat: 0086 18588475571
Ứng dụng trò chuyện: sales10@aixton.com
Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.
xmaterial | cold rolled steel | thickness | 0.8mm,1.0mm, 1.2mm |
---|---|---|---|
capacity | 24 cores | connector port | FC or ST ( round port ) |
application | 19" ODF optical distribution frame | installatino method | rack mount |
color | white, black | dimension | 480*200*1U mm |
Điểm nổi bật | rack mount odf,sliding patch panel |

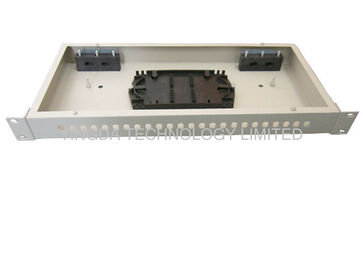

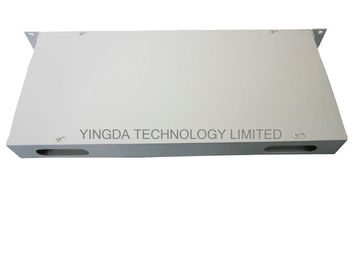

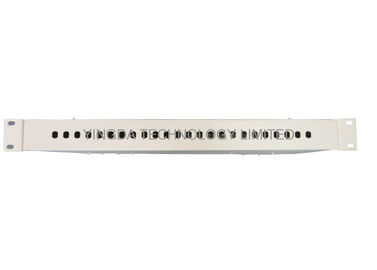

Optical Distribution Frame Rack Mounted 24 Cores FC SC LC ST Fiber Optic Patch Panel
19" Rack mount patch panel is mainly used for connection and storage between optical fiber cable
and pigtail in equipment, it can be wall mounted and floor-standing installation. The box body is made
of high quality cold rolled steel,electrostatic spraying, the appearance is beautiful, and the operation
is convenient.
Fiber optic patch panel can install FC SC LC ST adapters, and max capacity can be 12 cores, 24
cores, 48 cores, 72 cores or 96 cores on customer request by 1U, 2U, 3U, 4U. It is smart design to
supply firm protection for optical cable terminal connection and optical fiber adapter installation.
It is a combineof termination, protection, connection, management of fiber optic cables.
Features
- Flexible standard 19” cabinet installation
- Adapter FC SC ST and LC available
- Complete bending radii protection
- Sufficient spooling area for redundant fibers
- Enough space for fibers and pigtails to enhance fibers protection, pigtails protection and connections.
Specification
ambient temperature |
-25℃~+40℃ |
relative humidity |
≤85%(+30℃) |
atmospheric pressure |
70kPa~106kPa |
Insulation resistance |
fiber optic cable terminal and cable metal strength member, fiber optic cable metal components itself, fiber optic cable metal components and the ground, the insulation resistance should > 2 x 104MΩ. |
Dielectric strength |
fiber optic cable terminal and cable metal strength member, fiber optic cable metal components itself, fiber optic cable metal components and the ground, under 15kV voltage for 1min without breakdown, no arcing phenomena. |
Order information
Model |
Dimension (mm) |
Max Capacity (cores) |
GPRP-SC12 |
480×200×1U |
12 |
GPRP-SC24 |
480×200×1U |
24 |
GPRP-SC48 |
480×200×2U |
48 |
GPRP-FC12 |
480×200×1U |
12 |
GPRP-FC24 |
480×200×1U |
24 |
GPRP-FC48 |
480×200×2U |
48 |
GPRP-ST12 |
480×200×1U |
12 |
GPRP-ST24 |
480×200×1U |
24 |
GPRP-ST48 |
480×200×2U |
48 |
When order, pls tell us below details:
1. Complete assembly with adapter and pigtail OR empty panel optional
2. Box color: Black , White
