48 Cores Fiber Optic Patch Panel Cabinet Welding Tray 4 x 12F Rack Mounting
Liên hệ với tôi để lấy mẫu miễn phí và phiếu giảm giá.
WhatsApp:0086 18588475571
wechat: 0086 18588475571
Ứng dụng trò chuyện: sales10@aixton.com
Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.
xcapacity | 48cores | dimension | 485*300*140mm |
---|---|---|---|
weight | 6.9kgs | connector type | FC/PC,SC/PC,SCAPC,FC/APC,LC/APC,ST/UPC |
splice tray qty | 4pcs x12 fibers | splice tray capacity | 12 fibers |
pigtail type | sc fc lc st pigtail 0.9mm1.5meter | material | cold rolled steel sheet |
metal thickness | 1.0 mm | ||
Điểm nổi bật | optical distribution frame,sliding patch panel |

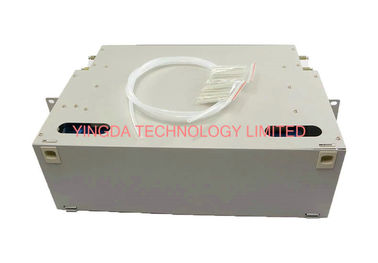

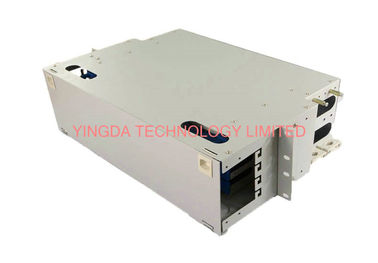

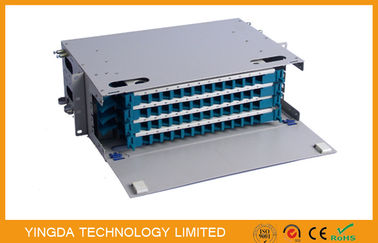

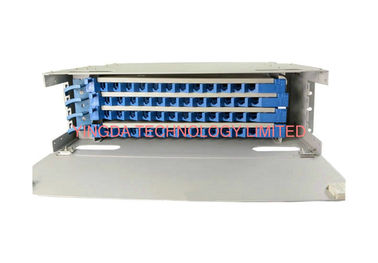

48 Cores Fiber Optic Patch Panel Cabinet Welding Tray 4 x 12F Rack Mounting
48Cores ODF optical fiber distribution frame is standard 19 inch chassis, capacity 48Cores,
It is high density, all modular design. This unit box make fiber splicing, fiber cable storage, cable
distribution in one set, each fused distribution module can be individually extracted, satisfy
the need of on and off the frame operation.
Large capacity optical distribution frame also are good operation, fused distribution module
can be installed FC, SC,ST, LC and many other adapters, and is suitable for common fiber
optic pigtails and ribbon pigtail, equipped with 12 core integrated fiber melting unit tray, can
be directly welded.
Main Technical Parameters
- Environment temperature: -5 ~+45°C
- Relatively humidity:≤85% (+30°C)
- Atmospheric pressure:70~166 KPa
- Connector attenuation (Interchangeable and repeat): ≤0.5dB
- Insertion loss: ≤ 0.3dB
- Return loss: APC ≥ 60dB; UPC ≥ 50dB; PC ≥ 45dB
- Pressure between high voltage protection place and distribution frame: ≥ 3000V (DC), 1min no breakdown, no arc
- Isolation resistance between high voltage protection place and distribution frame: ≥ 100MΩ/ 500V (DC)
- By cascading 12 port splice integration module, configurable 12-144 core, 12 core per tray
- Clamping FC/SC/ST/LC adapter, the adapter was 30 degrees arrangement, ensure the jumping fiber bending radius≥40mm, but also can avoid the laser burns eyes.
Structure features
- Made of high quality cold-rolled plate and the surface electrostatic spray, beautiful appearance
- The downward and the side door use imported lock
- The bar adapter panel can be installed adapters like: FC, SC, ST, LC,etc
- Configure reinforced core and cable fixed seat,complete accessories
Performance advantage
- Good sealing performance, flexible configuration, quick installation
- Set three functions: the optical fiber splice, cable storage, cable distribution in one set
- Easy operation, reliable grounding, protect the safety
- The full protection of the jumping fiber, ensure the bending radius ≥ 40mm
Standard package
Box body |
1pc |
Screws |
4pcs |
Sleeve (40/45/60mm) |
4pcs |
Buffer tube |
1pc |
Welding module tray 12core |
4pcs |
